What an RCP actually is — and why "reflected"
A reflected ceiling plan is a plan view of the ceiling drawn as though a mirror were lying flat on the floor and you were looking down into it. That is the whole meaning of the word "reflected", and it has one practical consequence worth understanding: the ceiling is not flipped left-to-right. A fixture drawn near the left-hand wall of the plan really does sit near that same wall when you stand in the room oriented the way the plan is.
Which is why the RCP can be laid directly over the furniture layout, at the same scale and the same orientation, and read as one drawing. That overlay is the first check anybody should run, and it is the one most commonly skipped:
- Is there a fixture actually over the dining table, centred on the table axis rather than the room axis?
- Is there a fixture over the front edge of the kitchen counter, so you do not work in your own shadow?
- Is the ceiling clear directly above the sofa seating line and the bed head, where a downlight sits straight in your field of view?
- Does the wardrobe wash line run parallel to the wardrobe, at a sensible setback from it?
If your designer has issued the RCP without a furniture plan to check it against, ask for both on one sheet before you approve anything. A ceiling coordinated only to the room's walls is a ceiling coordinated to nothing you actually use.
What belongs on the sheet
A complete residential RCP carries, on a single drawing: ceiling outlines and level changes; every light fixture with its symbol; cove and profile routes; AC grilles, diffusers and return-air paths; ceiling fans and their down-rod length; sprinklers and smoke detectors where applicable; ceiling speakers; motion and presence sensors; curtain pelmet and track lines; access panels; and the drop points where wiring leaves the ceiling for switches and keypads. When any of these live on separate drawings from separate vendors and are never overlaid, the clash is discovered on site. That is not a hypothetical — it is the normal outcome.
The legend and the fixture schedule
Every symbol on the plan should be defined in a legend box, and every lighting symbol should carry a type code — L1, L2, SP1, CV1 — that points to a row in a fixture schedule. The schedule is where the real specification lives, and a drawing without one is decoration. A usable schedule row gives all of this:
- Type code and quantity — L1, 22 nos.
- Description and model — recessed anti-glare COB downlight, make and part number, not "8W light".
- Wattage and delivered lumens — 8W, 720 lm at the luminaire, not chip lumens.
- CCT — a fixed value like 3000K, or a tunable range like 2700–5000K.
- Beam angle — 24°, 36° or 60°. Routinely omitted on Indian drawings, and the omission that most often ruins a room.
- Cutout diameter and overall depth — 75mm cutout, 105mm depth including driver.
- Dimming protocol — trailing-edge, 0–10V, DALI. This determines what hardware the fixture can be driven by at all.
- Circuit / channel tag — which dimmable group the fixture belongs to.
Read the schedule and count the distinct types. A residential RCP with two lighting types across the whole home has not been designed; a well-planned 3BHK typically runs six to nine types — a general downlight, a narrower task downlight, an adjustable accent spot, a cove strip, an under-cabinet strip, a mirror light, a step or plinth light, and an outdoor fitting. Our guides to panel vs COB vs strip vs spot lights and reading LED specs like lumens, CRI and efficacy cover what those rows should actually say.
One more line to insist on: CRI and colour tolerance. Ask for CRI 90+ and 3-step SDCM or better, and specify a single production batch per room, so one downlight in a straight line does not read visibly pinker than its neighbour. Which CCT belongs in which room is worked through in our colour temperature (CCT) guide, and why we prefer tunable and dimmable fixtures to a fixed value is covered there too.
Dimensions: from where, to what, and in what units
A fixture symbol with no dimension attached is a suggestion. The electrician marking your ceiling at 8am will place it by eye, by tape from whichever wall is nearest, or by scaling a printout that has already been resized in a photocopier. Every fixture — or at least every row and column origin of a grid — needs to be dimensioned. Four conventions to check:
- Dimension from the finished wall face, not the structural blockwork. Plaster, cladding, panelling and skirting move the finished face by 12–75mm, and on a 1.1m corridor that error is visible in a straight run of lights. The drawing should state which face it works from.
- Dimension to the centre of the cutout, not to the trim edge, and say so on the sheet.
- Chain the dimensions, and check the chain adds up. Setback + spacing × n + setback should equal the room's internal dimension. When it does not, the drawing has been edited without the dimension strings updating — a very common CAD artefact and an easy thing for you to verify with a calculator.
- Confirm the units and the scale. Residential Indian drawings are usually in millimetres at 1:50 or 1:25, but mixed feet-and-inches annotations on a millimetre drawing are frequent. And never let anyone scale off a PDF on a phone screen; dimensions must be written, not measured.
One practical instruction that saves a great deal of grief: ask for the ceiling to be marked out on the boards in chalk and photographed before the fixtures are cut. Reviewing a marked-out ceiling takes ten minutes and is the last free opportunity to move anything.
Levels, sections and the fight for the plenum
The plenum — the void between the structural slab and your finished ceiling — is the most contested space in the house, and the RCP is where that contest is either resolved or ignored. Typical Hyderabad apartments hand you a slab-to-floor height of about 2.9–3.05m, a false ceiling drops 150–300mm in the areas that carry services, and what remains has to hold AC ducts, drain lines with their fall, beams, fixture bodies, drivers and cabling.
Read the level markings
Ceiling levels appear as FCL (finished ceiling level) values or as drop notations against each ceiling zone — for example FCL +2700 in the living room and FCL +2550 in a peripheral service band. Check that every zone on the plan has a level, that the drops make sense against your slab height, and that the resulting height is one you actually want to live under: below about 2.55m a room starts to feel low, and it is far easier to argue about that on a drawing than after the framework is up.
Insist on at least one section
A plan alone cannot show vertical clearance. Ask for a section cut through the most congested band — usually the corridor or the strip where the AC duct runs toward the indoor unit. That section must show, stacked: slab soffit, beam depth, duct with its insulation, drain line with fall, the fixture body and driver, framework, and the board. Then check the arithmetic:
- A recessed COB needs about 90–120mm of clear depth plus airflow, more if the driver sits beside the fitting.
- A cove needs an internal channel of roughly 150–200mm width and 100–150mm depth for the light to build and wash the ceiling rather than throwing a hard line.
- An AC duct plus insulation typically wants 200–300mm, and a drain line needs continuous fall along its whole run — it cannot be locally raised to dodge a light.
Where a duct and a fixture want the same 150mm, the fixture moves — on the drawing. What actually happens on uncoordinated sites is that the fitting gets shifted 400mm sideways by whoever is holding the cutter, and your carefully spaced grid acquires a permanent kink. Timing matters as much as coordination here; see when to plan home automation during construction for the sequence, and adding home automation during renovation if your ceiling is already closed.
Access panels
Drivers, curtain motors, repeaters and junction boxes all live above the ceiling and all eventually need reaching. Every one of them should sit near a marked access panel, and those panels should be on the RCP — positioned deliberately in a wardrobe soffit, above a corridor or inside a service band, rather than cut into the middle of your living room ceiling three years later.
Where control lives on the drawing
Lighting layout is only half the RCP's job. The control layer — how those fixtures are grouped, wired and operated — has to appear on the same sheet, because it determines wiring routes that are only accessible while the ceiling is open.
Circuit and channel tags
Each fixture symbol should carry a group tag such as L-01 or CH3, and the sheet should list what each channel drives, its connected load in watts and which keypad button it belongs to. This is where you verify that the layering you paid for actually survives into the wiring: ambient grid, task fixtures, accent spots and cove should each be their own dimmable channel, never ganged together, and a large open living-dining should split into separate seating and dining channels. Channel capacities, minimum loads and grouping rules are in how to plan dimmer channels and lighting loads; if the grouping is wrong on the RCP, no amount of app configuration fixes it afterwards.

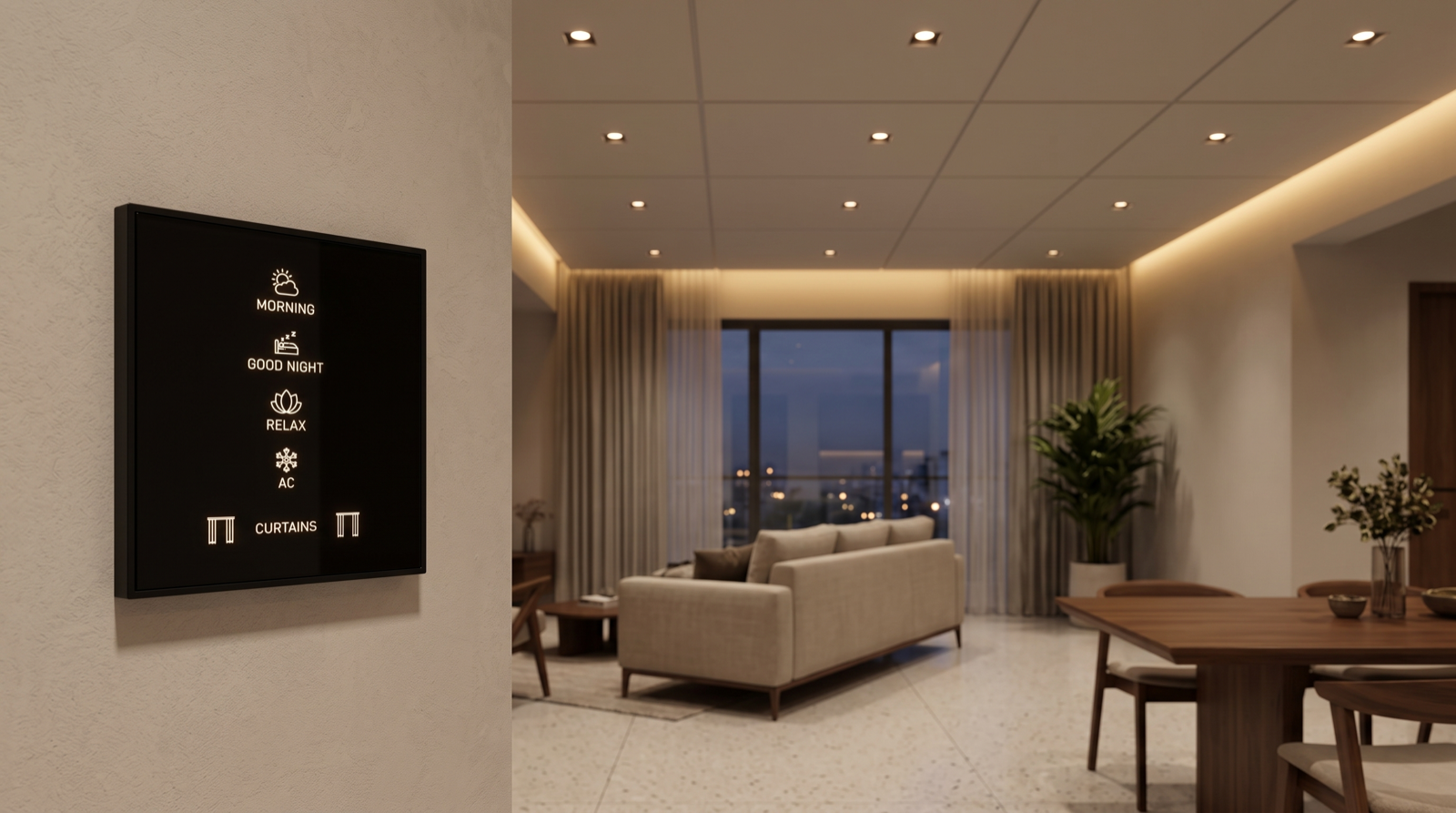

Switch and keypad drop points
Wall control positions are marked on the RCP as drop points even though the keypad itself is on a wall, because the cabling reaches it through the ceiling. Each should show its gang size, mounting height and back-box depth. Check three things against the furniture plan:
- The entrance keypad is on the latch side of the door, at 1,150–1,300mm, not behind the door swing.
- Bedside points are at 750–900mm and clear of the headboard and side table — measured against the bed you are actually buying.
- No control point is blocked by a wardrobe, a tall unit, a mirror or a full-height curtain.
Which buttons go on which keypad and how they are engraved is worked through in how to plan keypad layouts and engraving — and engraving is fabricated to order, so the button list needs to be frozen roughly when the RCP is.
Sensors, cameras and curtains
Motion and presence sensors belong on the RCP with a coverage cone drawn, because a sensor centred neatly in a corridor and one placed to catch cross-traffic behave very differently — see staircase and corridor lighting with motion sensors. Indoor camera positions and their fields of view should be marked too, along with the power runs to reach them; our guide to camera and sensor placement covers the coverage logic, and the hardware sits on our security page. Finally, every window that will get motorised curtains needs its pelmet depth, track line and a power point at the correct end of the track shown on the ceiling drawing — a curtain motor discovered after the pelmet is built is an expensive surprise.
Revision clouds, title blocks and version control
Most site errors we are called to fix are not design errors at all. They are version errors: the ceiling contractor built from R1 while the electrician wired from R3. Three habits prevent almost all of it.
- Read the title block. Drawing number, revision letter or number, date, scale, and who issued it. If a sheet has no revision and no date, it should not be built from.
- Insist on revision clouds and a revision table. Every change from the previous issue gets a cloud around it and a line in the table saying what changed and when. This lets you review a 40-change revision in five minutes instead of re-reading the whole sheet.
- One issued set, one channel. Agree that the ceiling contractor, electrician, HVAC team and automation partner all work from the same numbered issue, and that superseded prints are physically removed from site. A dozen unnamed PDFs in a WhatsApp group is how R1 gets built in the guest bedroom.
Also match the RCP against your commercial documents. The fixture schedule quantities should reconcile with the quotation line items, and the channel list should reconcile with the count of dimmer modules you are being charged for — a check worth doing carefully, using how to read a home automation quotation as the companion to this article.
The 20-point sign-off checklist
Run this before you reply "approved". It takes about half an hour with a printout, a scale rule and the furniture plan beside it.
- 1. Title block complete: drawing number, revision, date, scale, issuer.
- 2. Legend present, and every symbol used on the plan appears in it.
- 3. Fixture schedule present, with model, wattage, delivered lumens, CCT, beam angle, cutout and depth for every type.
- 4. Dimming protocol stated per fixture type, and consistent with the control hardware quoted.
- 5. CRI 90+ and 3-step SDCM or better specified; single batch per room noted.
- 6. RCP overlaid on the furniture plan and checked room by room.
- 7. Task fixtures centred on the counter, dining table and desk — on the furniture axis, not the room axis.
- 8. No-fixture zones respected above sofa seating lines and bed heads.
- 9. Every fixture dimensioned from a stated finished wall face, to the cutout centre.
- 10. Dimension chains add up to the internal room dimensions.
- 11. FCL or drop marked for every ceiling zone, and no zone lower than you are willing to live with.
- 12. At least one section through the most congested plenum band, showing clear depth for the fixture bodies.
- 13. Cove routes shown with internal channel width and depth, and the strip's start and end points marked.
- 14. AC grilles, ducts, drain lines, beams, sprinklers, fans and speakers all shown on the same sheet as the lights.
- 15. Access panels marked near every driver, motor, repeater and junction box.
- 16. Circuit and channel tags on every fixture, with a channel schedule and connected load per channel.
- 17. Layers not ganged: ambient, task, accent and cove each on their own dimmable channel.
- 18. Switch and keypad drop points with gang size, mounting height and back-box depth, checked against the furniture plan.
- 19. Sensor and camera positions with coverage direction; curtain track lines, pelmet depths and motor-end power points.
- 20. Named single issue agreed with every trade, and superseded prints withdrawn from site.
If more than three or four of these are missing, do not negotiate them one by one over WhatsApp. Ask for a revised, coordinated issue — that is a normal and reasonable request, and any competent team will already have most of it.
How Pert delivers it — a designed solution, not a DIY kit
Pert is a solutions company: we design and install. We do not hand over a carton of fixtures and a spacing chart and wish you luck. On the drawing side of a project that means a site visit to measure slab heights, beam positions, window and pelmet lines and the furniture layout; a coordinated lighting and control layer overlaid onto your interior designer's RCP, with clashes against ducts, drains, beams and sprinklers marked and resolved before issue; a fixture schedule that states model, lumens, CCT, beam angle, cutout, depth and dimming protocol for every type; a channel schedule tying each fixture group to a connected load and a keypad button; sections through the congested plenum zones; and a joint sign-off with you, your designer, the ceiling contractor and the electrician on one numbered issue.
After that we supply and install the dimmable, tunable smart lighting, motorised curtains and wall keypads the drawing describes, and commission the scenes in the finished, furnished room after dark — because a level that looks correct on a calculation sheet rarely looks correct at 9pm. If you are still choosing who to work with, our guide to the best home automation companies in Hyderabad covers what to check before you sign, and asking to see a coordinated RCP from a previous project is one of the fastest ways to tell a design practice from a box-shifter.
Got an RCP sitting in your inbox awaiting approval? Send it to us before you sign it off. We will overlay the lighting, control and services layers, mark the clashes and give you a coordinated issue — it costs nothing to move a light on a drawing and a great deal to move it in gypsum. Request a consultation →
Frequently asked questions
What is a reflected ceiling plan and why is it called reflected?
It is a top-down drawing of the ceiling as though a mirror were laid on the floor and you were looking down into it. Because of that convention the ceiling is not flipped left-to-right — a fixture drawn near the left wall really is near that wall in the room. That is what lets the RCP be overlaid directly on the furniture plan, which is the single most useful check you can run on it.
What should be marked on an RCP before a false ceiling is closed?
Every fixture dimensioned from two finished wall faces; a legend keyed to a fixture schedule with model, wattage, lumens, CCT, beam angle and cutout; FCL levels and drops; cove routes with internal dimensions; all services sharing the plenum (ducts, grilles, drains, sprinklers, beams); circuit and channel tags; switch and keypad drops with gang counts and heights; sensor and camera positions with coverage; access panels; and at least one section through the deepest congested band.
Who is responsible for coordinating the RCP?
Usually nobody, unless someone is appointed to. The designer authors it, the ceiling contractor builds it, the electrician wires to it and the HVAC team shares the plenum — and the overlap between them is where every site clash lives. On a Pert project we overlay our lighting and control layer onto the designer's RCP, mark the clashes and issue a coordinated drawing for one joint sign-off before any board goes up.
How much clearance does a recessed downlight need above the ceiling?
About 90–120mm of clear depth for a residential recessed COB — body, heatsink, driver and airflow — and more where the driver sits alongside the fitting. That is measured from the finished ceiling to whatever is above, so a soffit dropped 100mm below a duct has effectively no room. Cut a section through the congested zone on the RCP and confirm it fits before approving, not when the electrician is on the ladder.
